uHandy - Science Kit

Key Features

1. Optical Lens: Multi-element Aspherical Lens

2. Direct Magnification: The best optical imaging effect can be achieved at a magnification of approximately 40 - 270 times. [Note 1]

3. App Magnification: Maximum magnification of up to 1350 times. [Note 2]

4. Resolution: 0.7-0.9 micrometers [Note 3]

5. Field of View: Approximately 1.2 mm in diameter

6. Z-Axis Adjustment Range: The sample can be adjusted in depth by about 400 micrometers

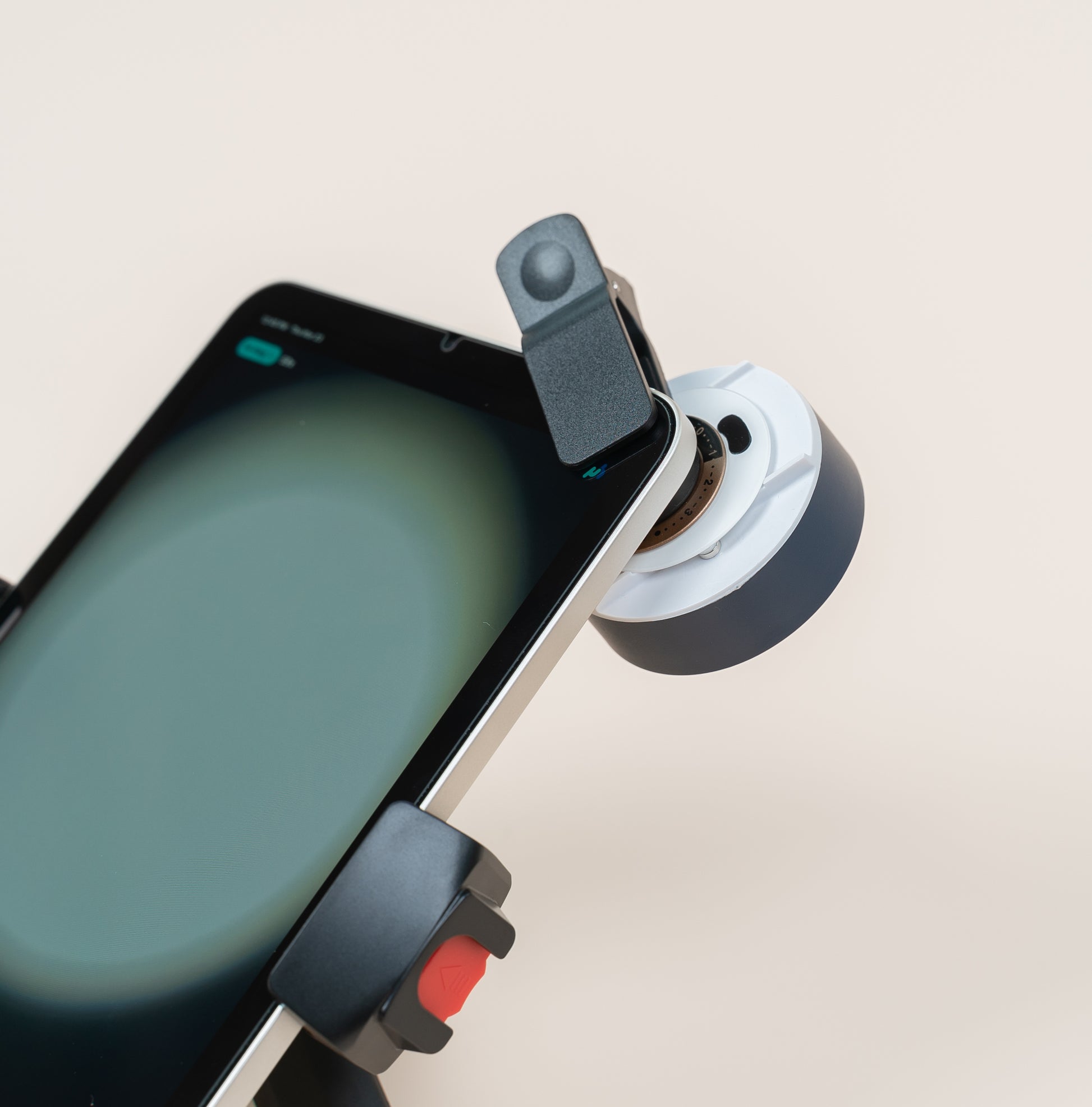

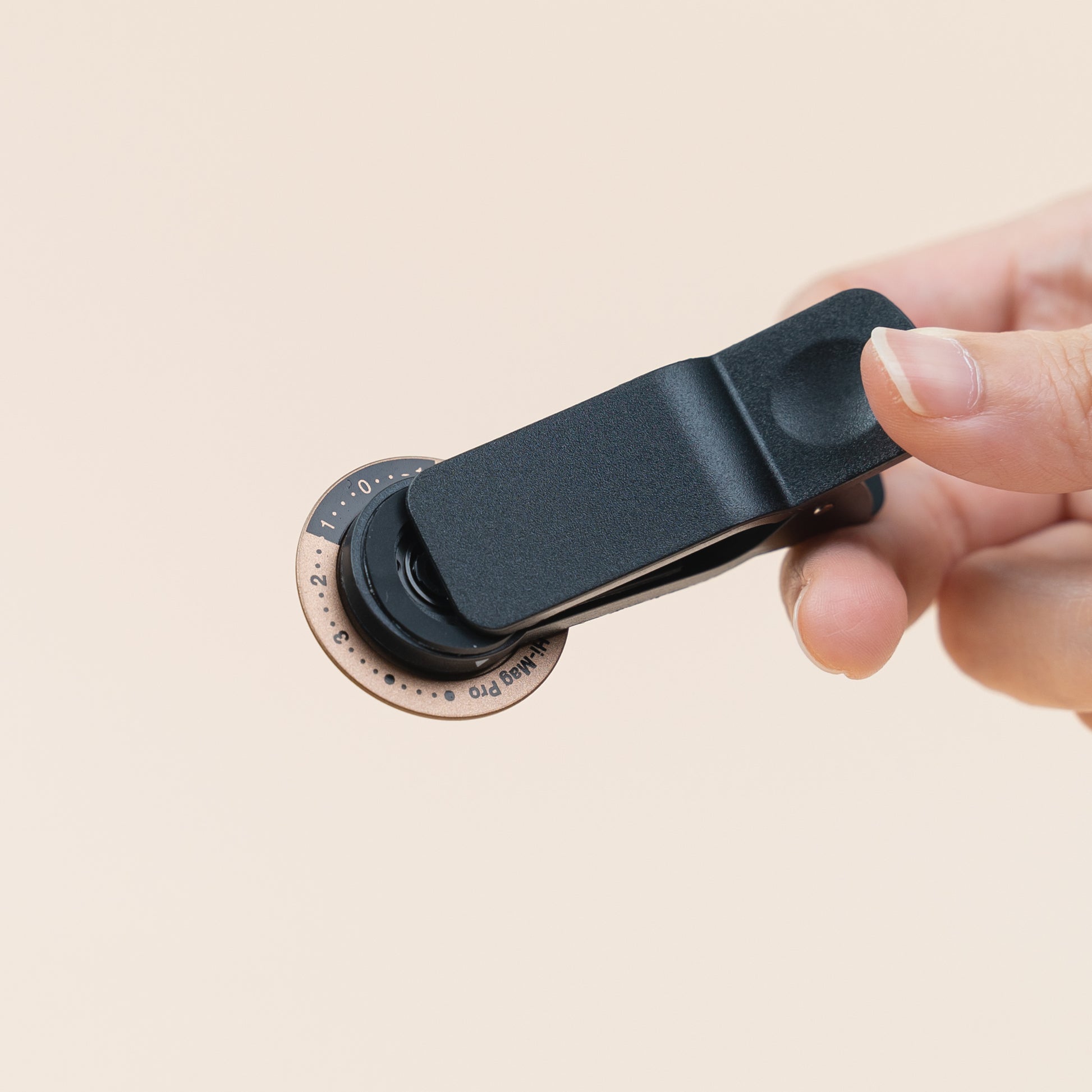

7. Lens Installation: Silicone pad lens clamp, align the lens with the device's main lens for secure usage.

8. System Support: iOS, and Android systems

9. Dimensions:

10.

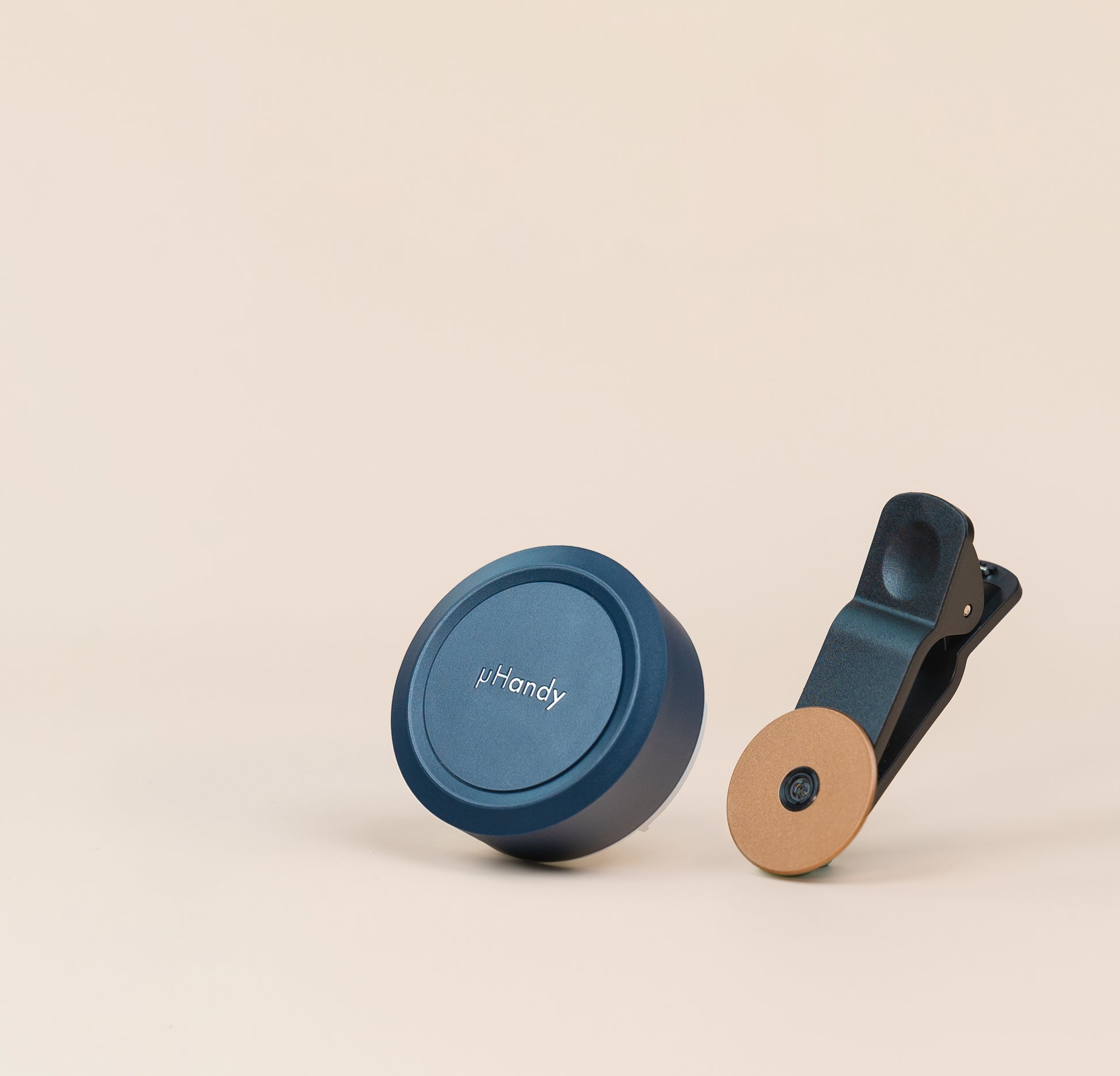

    1. Hi-Mag Pro Lens: Approximately 7 x 3 x 3 cm

    2. Light Stage: diameter 5.5 cm, height 2.5 cm

    3. Kit: 8 x 20 x 28 cm

11. Weight: Approximately 850 grams

• [ Note 1 ]
  Depending on the tablet or mobile device, the best optical imaging effect can be achieved within the following magnification ranges. Tablet: Approximately 80 - 480 times Mobile Device: Approximately 45 - 275 times

• [ Note 2 ]

  Depending on the tablet or mobile device, the App can provide a higher range of digital magnification. Tablet: Maximum magnification of up to 2400 times Mobile Device: Maximum magnification of up to 1350 times While optical resolution cannot be further improved, by using a larger screen, in most cases, effective results of "clearer visibility" or "viewing more details" can be achieved.

• [ Note 3 ]

  Different devices have varying resolution capabilities; currently, available tablets/mobile devices mostly fall within the range of 0.7-0.9 micrometers. iPad mini 6 and iPhone 11 Pro were tested at 0.7 micrometers (able to resolve the 1951 USAF Resolution Test Target).

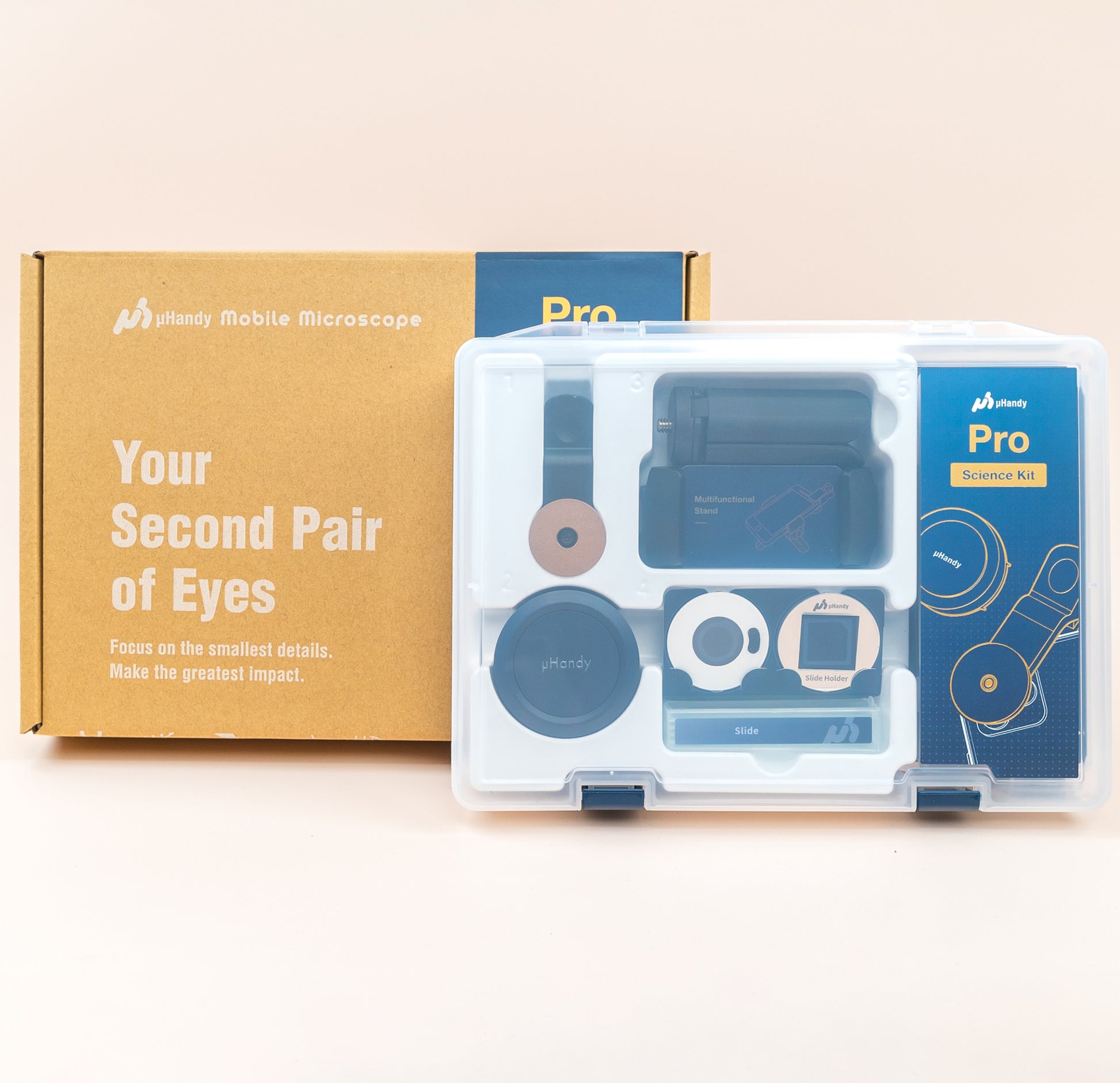

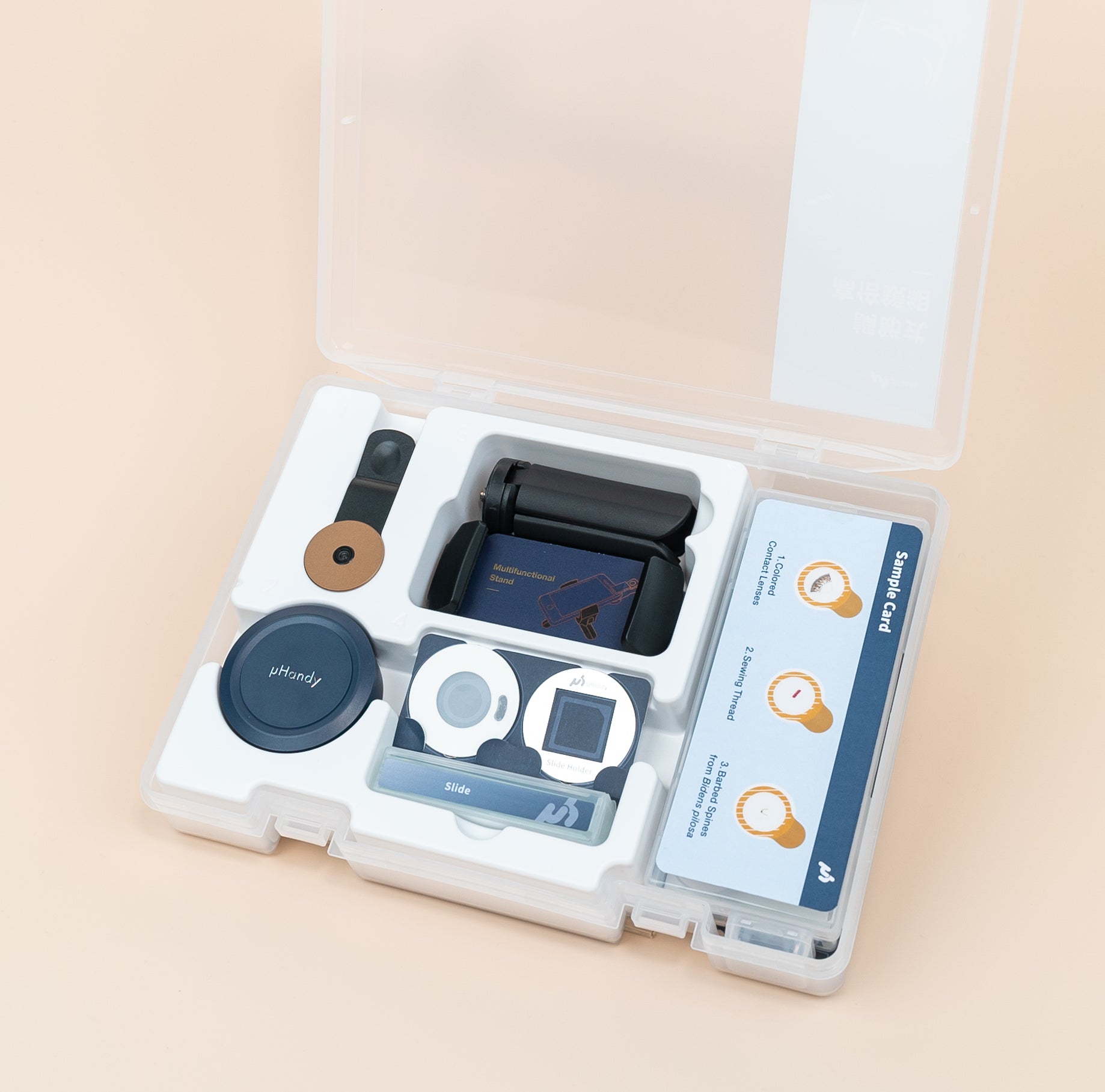

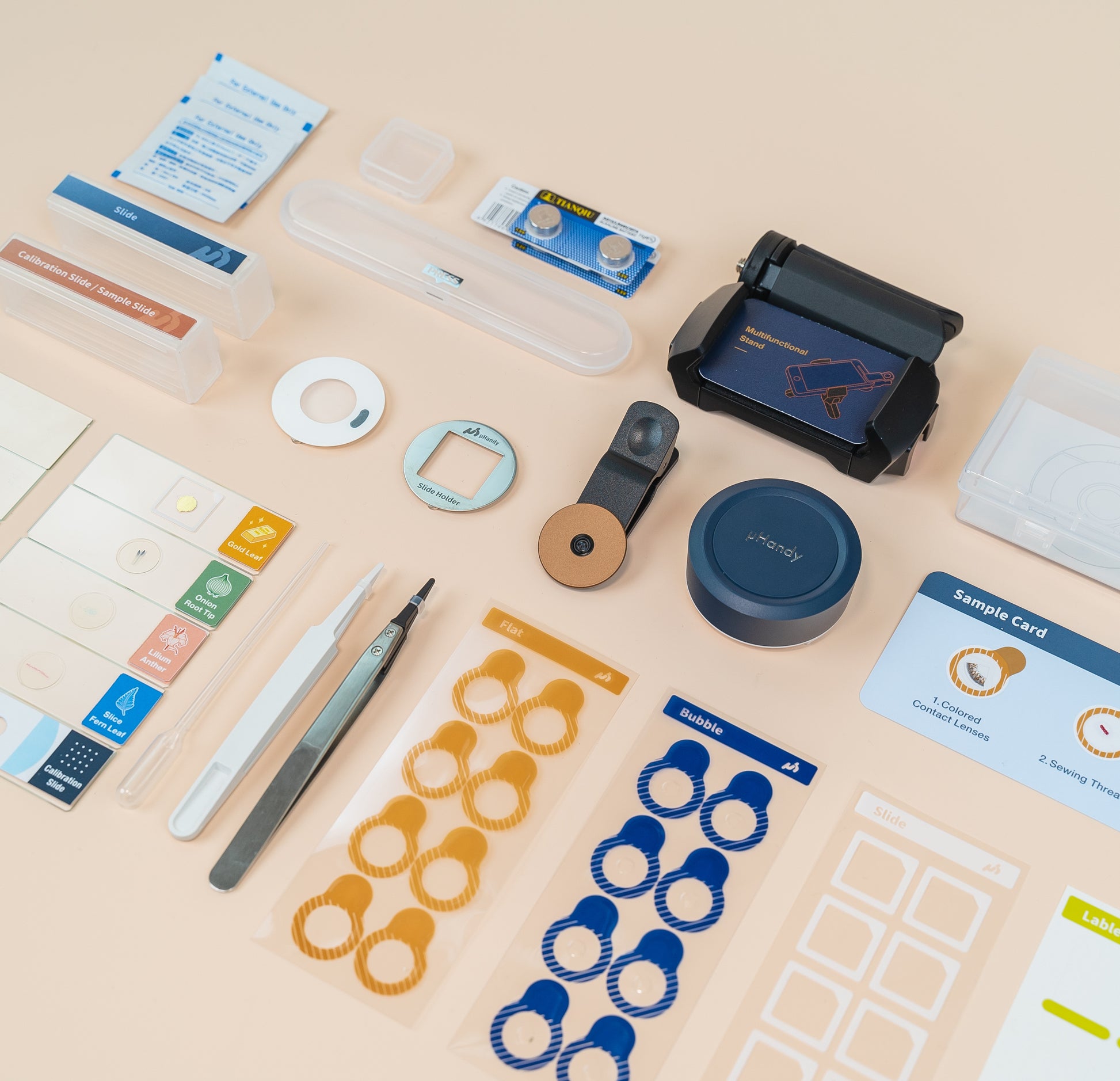

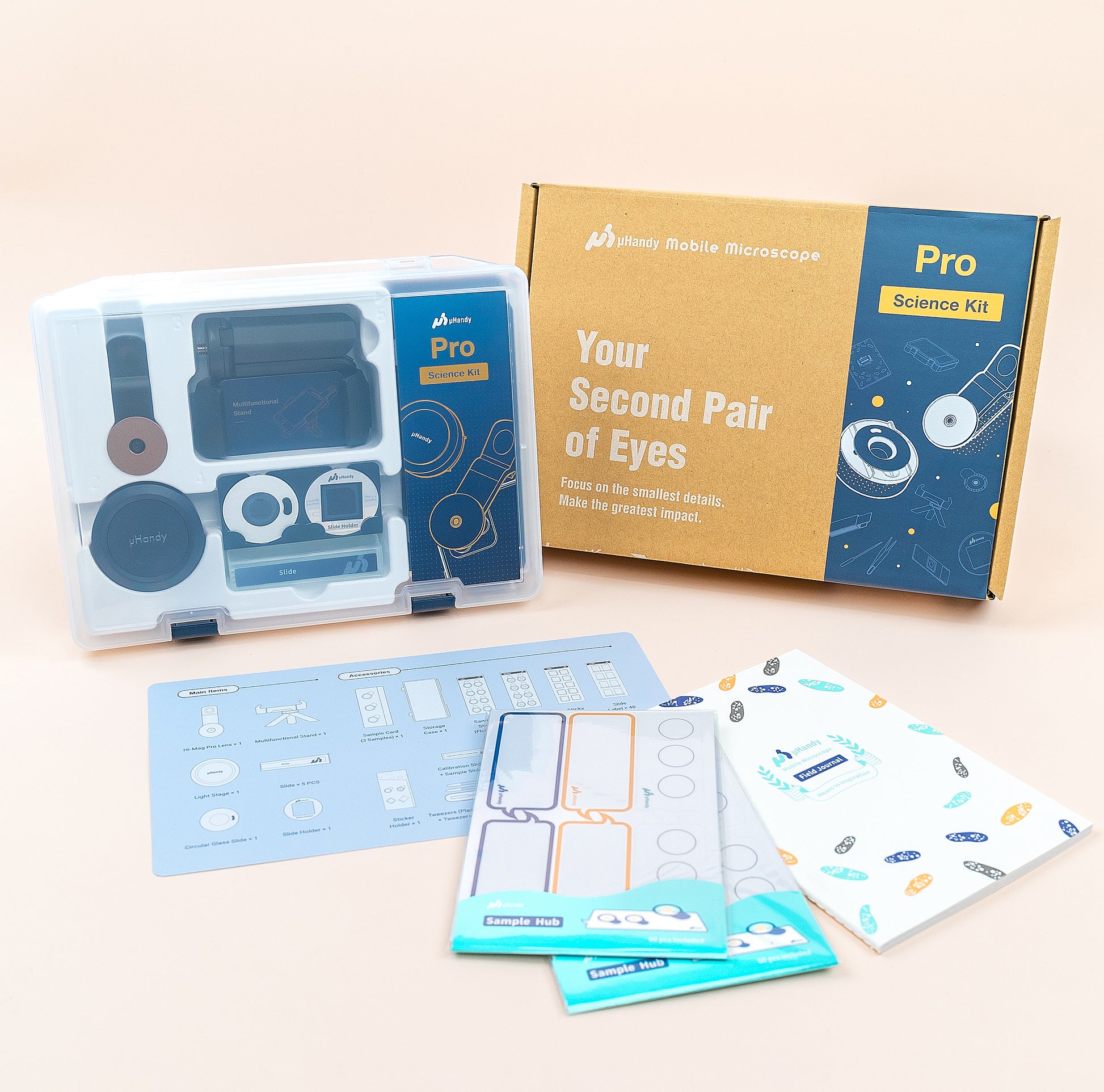

What's Included

1. Hi-Mag Pro Lens

2. Light Stage

3. Multifunctional Stand

4. Blank Conventional Glass Slides

5. Circular Glass Slide (thin)

6. Slide Holder

7. Sample Card

8. Sampling Stickers (Flat)

9. Sampling Stickers (Bubble)

10. Coverslip Stickers

11. Slide Labels

12. Tool Kit

13. Batteries

14. Field Journal

15. Sample Hubs
